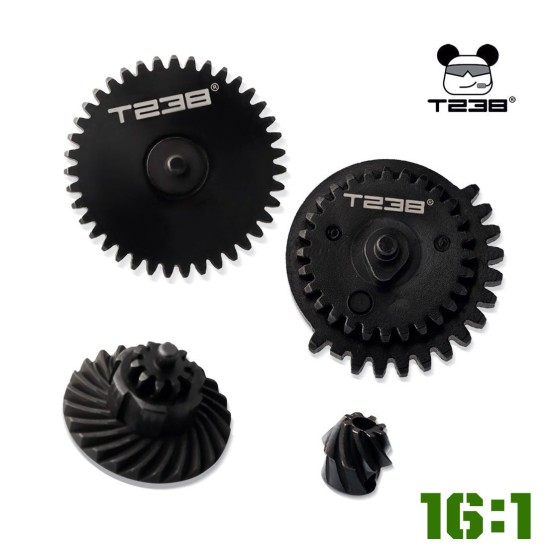

T238 AEG Spiral Gear Set Pro Edition (Helical Bevel & Pinion) - 16:1

The T238 Gear Set Pro Edition is a gear set specifically designed for professional AEG players. It features three commonly used gear ratios and utilizes spiral gear design for the bevel gear and pinion gear, providing enhanced load-bearing capacity and noise reduction. The delayed tappet plate control pin design prevents the nozzle from retracting prematurely at high rates of fire, avoiding air loss. The second gear adopts a half-height design, increasing the tolerance for gear meshing at high rates of fire and reducing gear wear.

Features

• With spiral (Helical) bevel gear & pinion gear
• Delayed tappet plate control pin
• Half height second tooth increase high ROF fault tolerance
• Precision CNC machined construction
• Wire cut steel pinion gear
• Heat treated for improved strength and durability
• Material: 40Cr Steel
• Rockwell hardness: 38-42HRC

Gear Ratio:

• 9:1 Ultimate High Speed (Recommended for springs M200 and under)
• 13:1 Super High Speed (Recommended for springs M110 and under)
• 16:1 High Speed (Recommended for springs M150 and under)
• 18:1 High Torque (Recommended for springs M180 and under)

Compatibility: Most Standard AEG Gearboxes (M4, AK, MP5, G36, P90, and Other Compatible Models)

Package Includes: Spur Gear, Sector Gear, Bevel Gear, Pinion gear set

• Warning: Install sufficient shims to the Bevel Gear to ensure full meshing engagement with the pinion gear.
