Well Pro PPK-20 "Deluxe" Submachine AEG - High ROF DSG with ETU

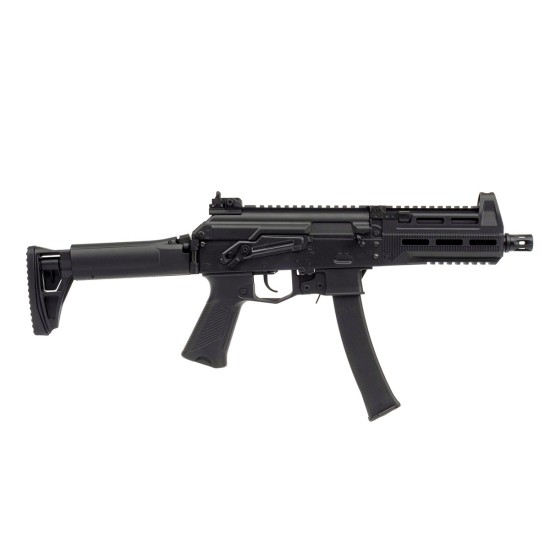

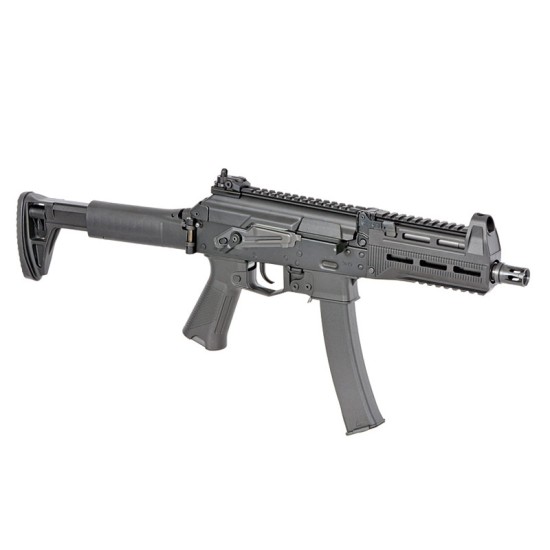

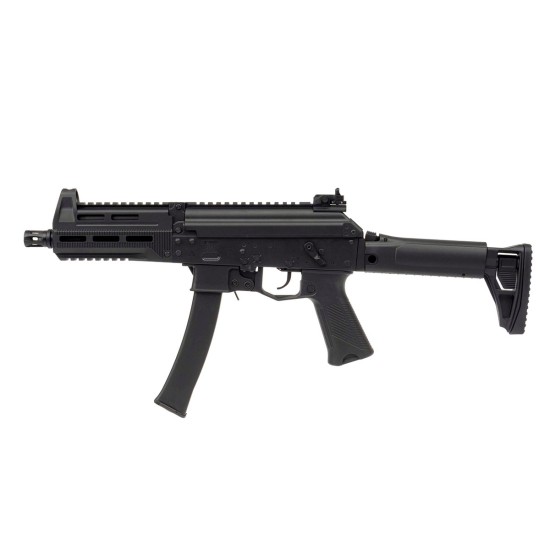

The Well Pro PPK-20 is a replica based on the upgraded Version of the Russian PP19-1 "Vityaz" Submachine gun. It is designed for close-quarters combat and followed the AK-12's design upgrades for a more ergonomic and user friendly experience.

"Deluxe" Full Metal Construction

As opposed to the Sportsline Version which saves on weight and cost, the "Deluxe" Version is made with a full metal construction receiver and adjacent components.

Between the handguard and receiver, we can take note of the trunnion block, constructed from steel with an authentic appearance matching real Russian anti-corrosion finishes. The trunnion block is the part that links the barrel to the receiver and is often made from cast alloy, even in high-end AK platforms. The steel trunnion block will definitely please the stitch counters searching for the most realistic replica but it also adds a significant amount of strength to help prevent unfortunate skirmish stumbles from snapping your primary in half!

Each and every of these replicas come with a unique serial number!

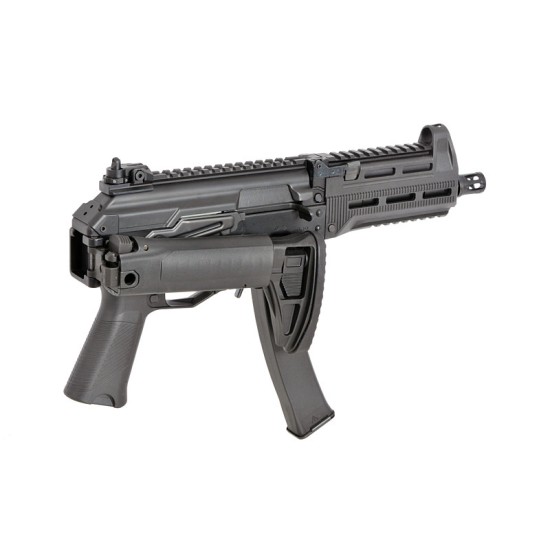

Overall Design

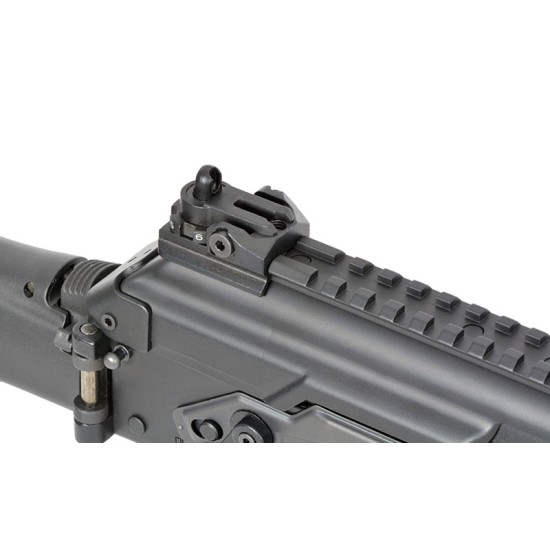

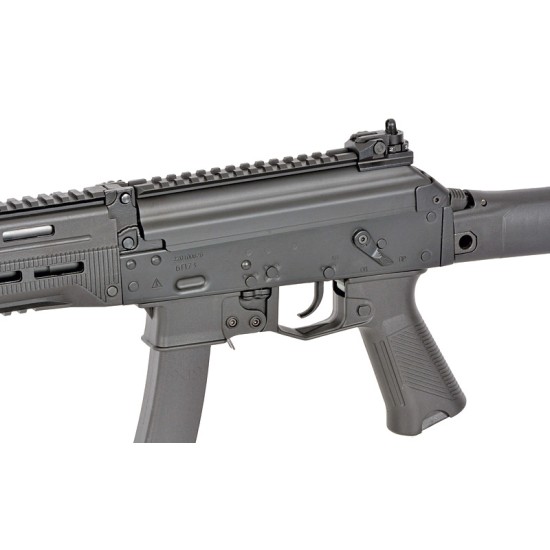

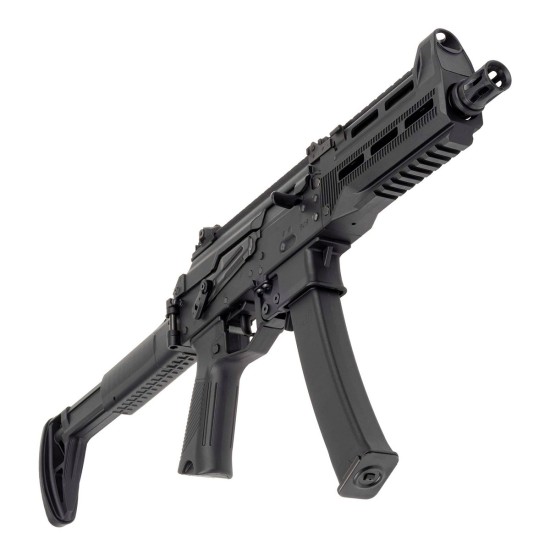

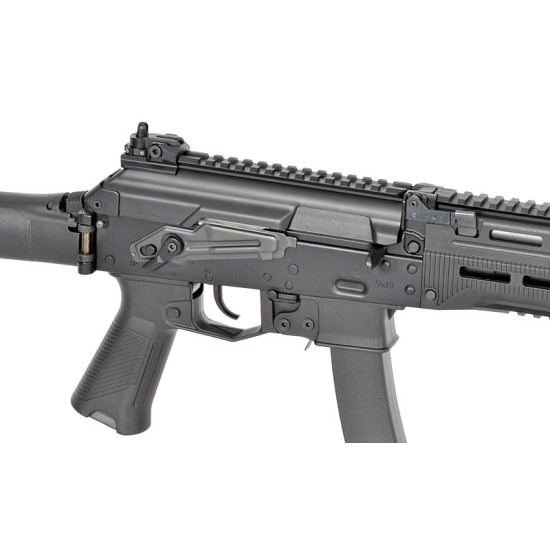

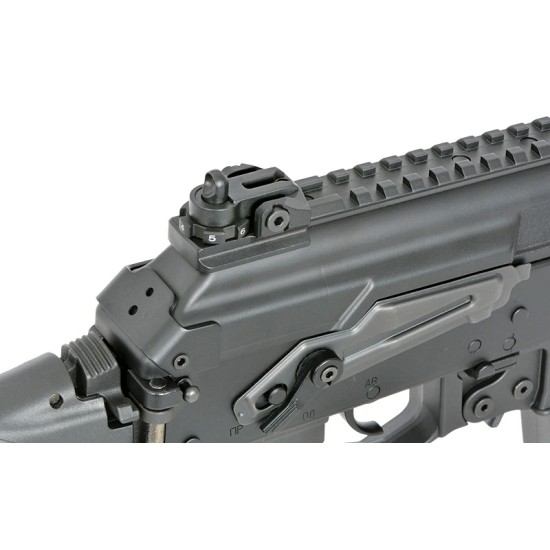

The 'compact' version of the PPK-20 submachine gun borrows several design features from the AK-12 rifle, such as a removable top cover with an integrated 22mm Picatinny rail for optics, a polymer handguard, and a new pistol grip with an integrated trigger guard. The replica is equipped with a new ambidextrous safety/fire selector with levers on both sides of the receiver. An additional selector spring automatically closes the rear of the receiver when the selector is in the "Safe" position. The compact WE06 submachine gun is equipped with a protected front sight, integrated into the upper part of the handguard, which also features a 22mm Picatinny rail on both the upper and lower sections, as well as an ambidextrous M-LOCK mounting system, both systems allowing us to mount necessary accessories such as grips or tactical flashlights. The adjustable folding 9-position telescopic stock, borrowed from the compact AM-17 assault rifle, folds to the right. On the stock, we also find a QD sling mount point, allowing for the attachment of a tactical sling. The replica comes with a dedicated 30/80 round variable capacity magazine. All these features makes this replica a perfect choice for Close Quarters games, where speed and mobility are key.

High ROF [25-30 RPS]

This replica is equipped with a dedicated V3 Gearbox, adapted to work with a dual selector gear setup and a quick spring change system, designed so that the gearbox can be accessed by folding the stock. Thanks to modifications to the external gearbox structure, the manufacturer has shortened the spring stroke, significantly increasing the Rate of Fire. Internally, it features reinforced high-speed steel gears with a 9:1 ratio, mounted on 8mm sliding bearings, a piston with a full metal rack, and a type 2 cylinder.

Optical ETU

This submachine gun is equipped with an Updated Optical Electric Trigger Unit and MOSFET with programmable firing modes (BINARY mode or 3-round BURST), and a Piston Pre-cocking setting function (which reduces the time between trigger pull and shot), all powered by a 20K RPM neodymium motor.

Specifications

• Overall Length: 610-690mm
• Weight: 2684g
• Inner Barrel Diameter: 6.02mm
• Inner Barrel Length: 210mm
• Barrel Threads: 14mm CCW
• Receiver Construction: Steel Metal

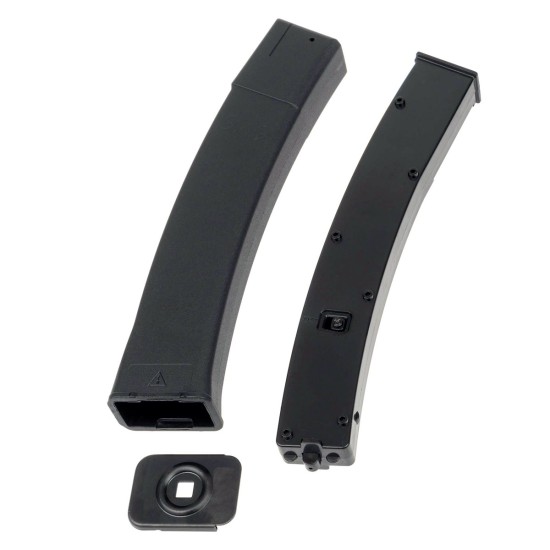

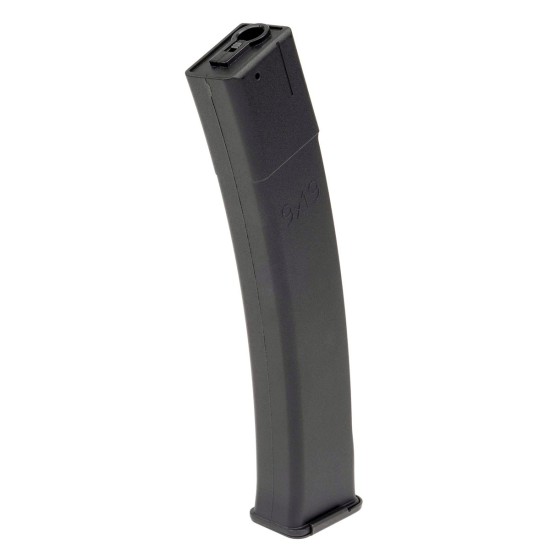

• Magazine Capacity 30 / 80rds Switchable

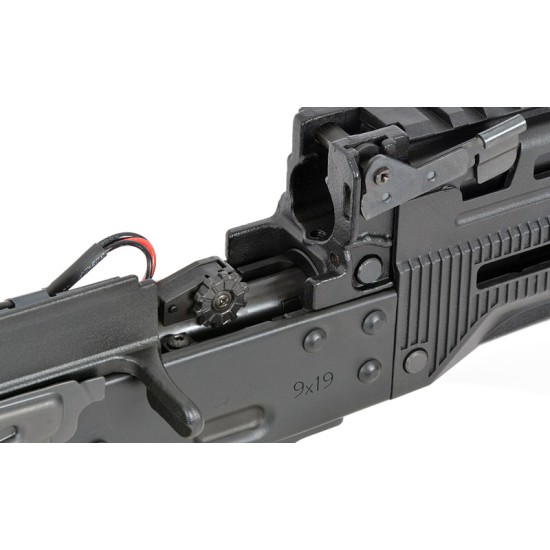

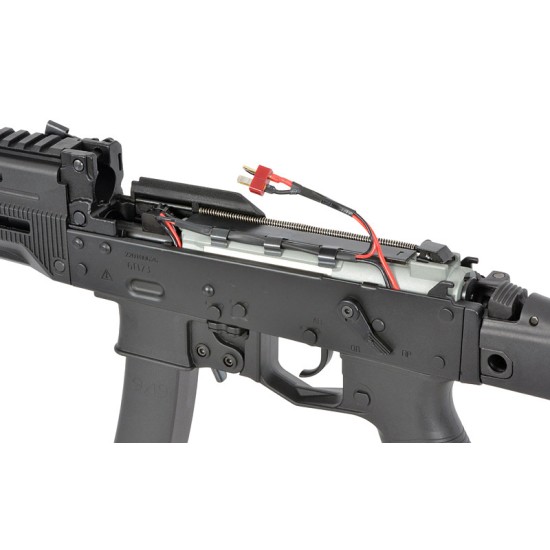

• Battery Compartment: Under Dust Cover (AK Stick battery)
• Gearbox: V3 with 8mm Bearings and QD Spring Change
• Firing Control: ETU with MOSFET
• Internal Notes: Dual Sector Gear Setup for High ROF
• Muzzle Energy: 0.95-1.07 Joules
• Muzzle Velocity: Approx. 320-340 FPS with 0.20g
• Rate of Fire: 25-30 Rounds per Second with a 11.1V Li-Po Battery
